STARTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]
id0119h8800200
Operation After Replacing Starter
Step |
Action |
---|---|
1
|
Switch the ignition ON (engine off).
|
2
|
Apply the parking brake firmly.
|
3
|
Shift the selector lever to the N position. (ATX)
Shift the shift lever to the neutral position. (MTX)
|
4
|
Perform the following work with the brake pedal depressed.
1. Depress and release the accelerator pedal 6 times.
2. Verify that the i-stop indicator light (green) flashes.
3. Depress and release the accelerator pedal 6 times.
4. Verify that the i-stop indicator light (green) changes from flashing to illumination.
|
5
|
Long-press the i-stop OFF switch.
Wait until the i-stop indicator light (green) turns off (for 5 s or more).
• If the light does not turn off, switch the ignition off and repeat the procedure from Step 1.
|
6
|
Switch the ignition off.
|
7
|
Start the engine.
|
8
|
Verify that the i-stop warning light (amber) turns off.
• If the light does not turn off, switch the ignition off and repeat the procedure from Step 1.
|
9
|
Switch the ignition off and disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
|
10
|
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING) [SKYACTIV-D 2.2].)
|
Starter Removal/Installation
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the front under cover No.1 and No.2. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
3. Remove the air cleaner and fresh-air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4. Disconnect the charge air cooler outlet hose from the intake shutter valve, and set the hose out of the way. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

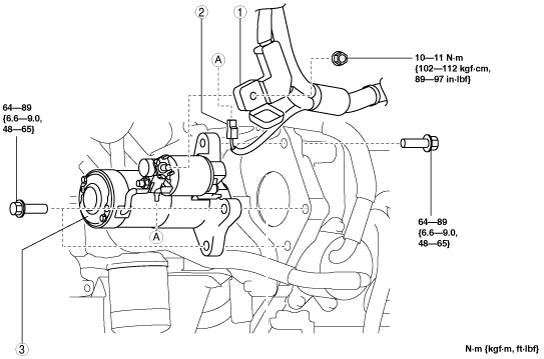

am3zzw00015133
|
1
|
Terminal B cable
|
2
|
Terminal S connector
|
3
|
Starter
(See Starter removal note.)
|
Starter removal note
1. Remove the starter upper bolt from above the engine compartment.
2. Set the wiring harness aside according to the following procedure. (With i-ELOOP)

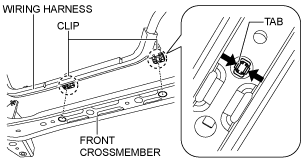

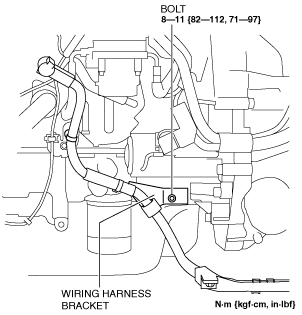

am6zzw00012313
|
am6zzw00012314
|
3. Remove the ATF oil cooler water hose bracket installation bolt shown in the figure, and set the water hose out of the way. (ATX vehicles without i-ELOOP)
am6zzw00012315
|
4. Remove the two starter lower bolts and the starter from below the engine compartment.
Starter installation note (ATX)
am6zzw00012310
|
